If you own a home in Dallas, you already know how unpredictable our clay soils can be. One season it’s dry and cracked. The next it is to soak and swell. That constant cycle is rough on foundations. It’s why many homeowners eventually hear about concrete pressed pilings during a foundation inspection.
Concrete pressed pilings are one of the fastest and most efficient foundation repair methods in North Texas. They’re quick to install and cost-effective. They’re also designed to reach deeper soil layers that don’t shift with the weather. Let’s take a closer look at how they work and why they’re so effective for Dallas homes. You’ll also learn how the Pro-Lift pressed piling system from Arch Foundation Repair improves on traditional methods.
What Are Concrete Pressed Pilings?

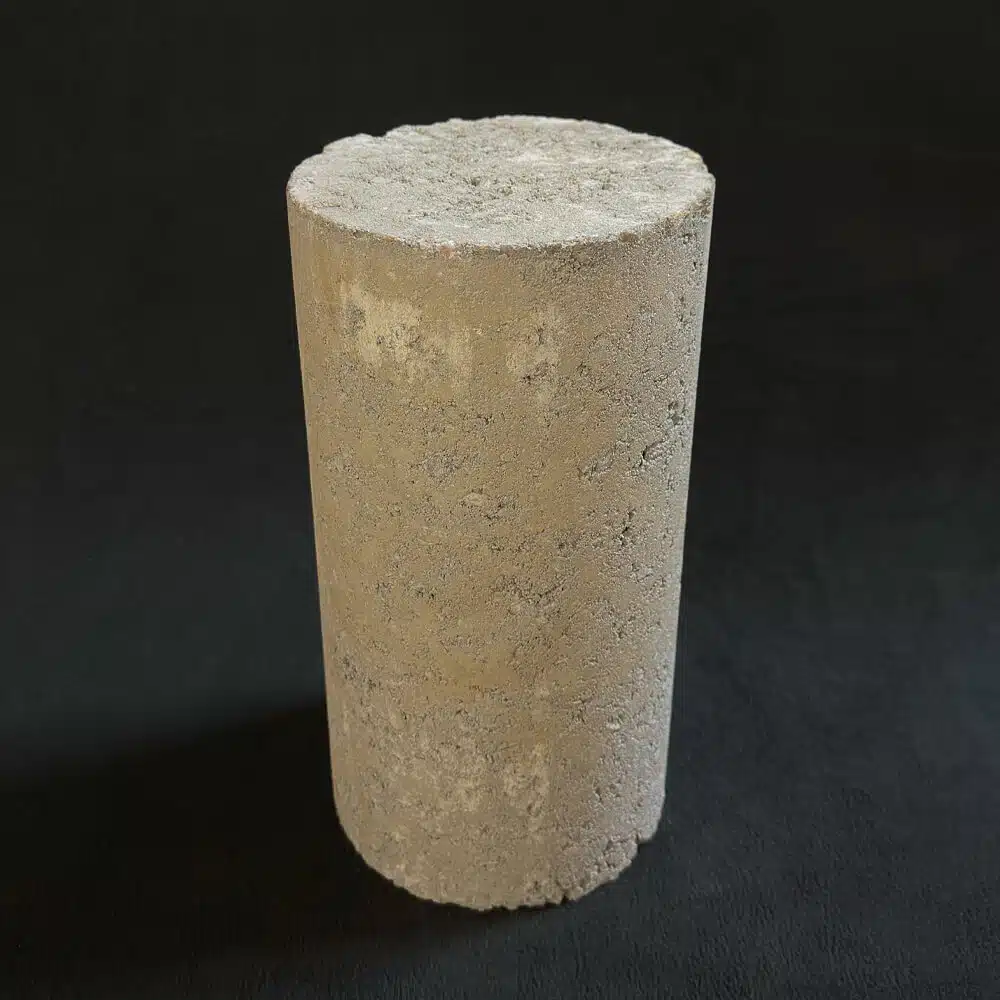

Concrete Pressed Pilings are pre-cast concrete cylinders hydraulically driven into the ground beneath your home. Each section is pressed downward using the home’s own weight. The piling continues going deeper until it hits firm, load-bearing soil. Once installed, the pilings create a vertical support column that carries your home’s weight below the active clay layer.
Unlike concrete piers, which are poured on-site, pressed pilings are pre-made and cured in advance. That means there’s no waiting for the concrete to harden. Leveling can begin as soon as installation is finished. It’s one reason pressed pilings are such a popular foundation repair option in Dallas.
How Pressed Pilings Are Installed
The installation process starts with a plan. Technicians mark where each piling will go. They’re usually spaced every six to eight feet along the perimeter or under key support points.
A hydraulic ram pushes the first concrete cylinder into the ground. More sections are stacked and pressed down until the piling reaches solid soil. Each piling is “tested” as it’s installed. The crew knows it’s deep enough when resistance from the soil stops further movement.
In the Pro-Lift system, a rigid steel connector is added on top. This piece ties the piling directly to your foundation beam. It keeps the piling from shifting sideways over time. Once all the pilings are installed, the foundation is gently lifted with hydraulic jacks. Finally, the home’s weight transfers onto the new supports.
Why Pressed Pilings Work So Well in Dallas
Dallas foundations sit on highly expansive clay soil. This soil type expands when wet and shrinks during drought. The constant swelling and shrinking push your foundation up and down. Pressed pilings bypass this problem by extending deep below the active clay layer.
Because the pilings reach consistent, compacted soil, they don’t move with surface moisture changes. That deeper soil stays stable year-round. This makes pressed pilings a perfect match for Dallas homes that need a solid, long-term foundation repair solution.
The Advantages of Concrete Pressed Pilings
Pressed pilings are fast to install. Most projects finish within one to three days. That means you get results quickly without weeks of disruption.
They’re also cost-effective. The materials are pre-cast, so labor and equipment needs are lower. This makes pressed pilings one of the most affordable foundation repair methods in Dallas.
The system is clean too. Crews dig only small access holes, so lawns and landscaping stay mostly intact. Each piling is tested during installation, proving it can handle your home’s weight before lifting begins.
With the Pro-Lift pressed piling system, you get even more confidence. It includes a rigid steel connection and a lifetime transferable warranty through the Texas Foundation Warranty Trust. That warranty gives Dallas homeowners long-term peace of mind.
Common Misconceptions About Concrete Pressed Pilings
Some people think pressed pilings are a budget or “quick fix” option. That’s not true when they’re installed correctly. A professional crew ensures every piling is driven to refusal, which means solid support.
When combined with rigid steel connectors, pressed pilings can perform as well as drilled concrete piers. The key is proper installation. Poor alignment or shallow pilings can cause problems later. That’s why it’s important to choose an experienced Dallas foundation repair company like Arch Foundation Repair.
Possible Drawbacks
Pressed pilings may not be the right solution for every situation. For example, depth verification relies on installer records rather than visual checks. In addition, rocks or buried debris can block a piling before it reaches the ideal depth. Furthermore, in areas with inconsistent soil, some pilings might need to extend deeper than others.
Even so, pressed pilings continue to rank among the most effective and economical foundation repair choices for many Dallas homes.
Concrete Pressed Pilings vs. Concrete Piers
Pressed pilings shine when you need fast, effective foundation repair with minimal disruption. Concrete piers are better when you want extra engineering control. Both work well in Dallas if installed by experts.
| Feature | Pressed Pilings | Concrete Piers |
| Installation | Driven by hydraulic pressure | Drilled and poured |
| Speed | 1–3 days | 10+ days |
| Cost | Lower | Higher |
| Soil Verification | Depth verified by refusal | Verified visually |
| Disturbance | Minimal | Heavy excavation |
| Best For | Exterior access, quick repair | Heavy loads, deep soils |
Signs You May Need Concrete Pressed Pilings
Cracks forming in drywall or brick often serve as early warning signs. Likewise, floors that slope or doors that stick are additional common clues. You may also notice gaps between ceilings and walls. Over time, patios or driveways can even pull away from the house.
Altogether, these issues point to foundation movement. In most cases, shifting soils cause the problem. So, if you’ve noticed any of these signs, don’t wait—give us a call today. By scheduling a foundation inspection early, you’ll make repairs easier and prevent further damage.
Why Choose the Pro-Lift Pressed Piling System
The Pro-Lift concrete pressed piling system by Arch Foundation Repair builds on traditional designs. It uses rigid steel connectors that lock each pier in place, therefore preventing any lateral shifting. In addition, every concrete cylinder is high-density and tested to confirm its compression strength.
During installation, technicians carefully document each step, so you’ll know exactly how deep every piling goes. As a result, the load spreads evenly across the foundation and helps stop future settlement. Furthermore, the work includes a lifetime warranty through the Texas Foundation Warranty Trust, giving you long-term peace of mind.
Ultimately, this system delivers speed, strength, and reliability. Therefore, it stands out as one of the most advanced foundation repair options available in Dallas.
Ready to Get Started?
Concrete pressed pilings are a proven solution for foundation problems in Dallas. They work. They cost less than other options. Best of all, they deliver lasting results. Whether your home needs minor lifting or major realignment, the first step is an inspection.
Contact Arch Foundation Repair today to schedule your estimate. Learn how concrete pressed pilings can restore your foundation and protect your home for years to come.
