Types of Wall Cracks and Gaps & What They Mean
Common Cracks and Gaps
Type of Crack/Gaps |
Appearance | Possible Cause | Foundation-Related? |
---|---|---|---|
Hairline Cracks |
Thin as a thread, often in drywall or plaster | Paint shrinkage, minor settling | Usually not |
Vertical Cracks |
Runs up and down | Normal settling or slight foundation shifts | Sometimes |
Horizontal Cracks |
Runs side to side | Excessive foundation movement, possible structural issue | Yes! Get it checked! |
Stair-Step Cracks |
Follows mortar lines in brick or block walls | Foundation movement or soil issues | Yes! Big warning sign |
Wide Gaps at Doors/Windows |
Gaps between trim and walls | Foundation shifting, framing movement | Yes, especially if worsening |
Baseboard Separation |
Gaps forming at floor level | Foundation settling, humidity changes | Sometimes |
Drywall Tape Buckling |
Tape peeling or bubbling | Moisture issues, minor shifts | Usually not, but keep an eye on it |
Bowing Walls |
Walls curving inward | High external pressure, foundation failure | Yes, serious issue! |
Bulging Cracks |
Cracks with bulging or displacement | Structural stress, foundation failure | Yes, immediate attention needed! |
When to Worry About Cracks in the Walls
Not all cracks spell disaster, but some require urgent attention. Here’s how to tell when a crack is serious:
Harmless Cracks:
- Hairline cracks in drywall or sheetrock
- Small cracks due to paint shrinkage
- Slight vertical cracks from normal settling
Serious Cracks:
- Horizontal cracks in walls
- Wide stair-step cracks in brick or block walls
- Bulging cracks or bowing walls
- Recurring cracks that keep coming back after repairs
- Large gaps around windows and doors
Dangerous Cracks:
- Cracks wider than 1/8 inch
- Cracks that run from floor to ceiling
- Structural cracks causing separation in walls
- Cracks with water leakage or moisture damage
- Cracks accompanied by sloping floors or sticking doors/windows
Step-by-Step DIY Guide to Fixing Cracks in Drywall
Fixing Hairline Cracks in Drywall/Sheetrock
Widen the crack a bit using a putty knife. It makes for adhesion. Apply spackling paste or lightweight joint compound. Again, using a putty knife, smooth the surface. Then let it dry. Sand lightly and repaint.
Drywall Corner Cracks Repair
Remove any loose material from the corner. Apply joint compound and embed mesh tape for reinforcement. Once dry, add another thin layer of mud. Sand smooth and paint.
Fixing Recurring Cracks
Scrape out the old repair material. Use a flexible compound like elastomeric caulk or polyurethane sealant. Apply mesh tape to reinforce the crack. Layer with joint compound and sand when dry. Paint over for a seamless finish.
Repairing Wide Cracks and Gaps
Clean out the crack and remove debris. Use epoxy filler or polyurethane sealant for flexibility. Apply multiple thin layers of compound if necessary. Sand, prime, and paint.
Fixing Bulging Cracks in Walls
Assess if structural reinforcement is needed. Remove loose plaster or drywall. Apply mesh tape and joint compound in layers. If the wall is still bulging, consult a professional.
Repair Bowing Walls
If a wall is bowing, it usually requires foundation stabilization. Consult a foundation specialist immediately to prevent collapse.
Understanding Repair Materials
Flexible Compounds vs. Rigid Compounds
Flexible Compounds (Polyurethane, Silicone, Elastomeric Caulk)
- Best for cracks that may continue to shift.
- Expands and contracts with wall movement.
- It is ideal for foundation cracks, exterior wall gaps, and recurring cracks.
Rigid Compounds (Spackle, Joint Compound, Plaster, Mortar Repair)
- Provides a smooth finish but may crack again if the wall shifts.
- Best for interior drywall repairs and finishing.

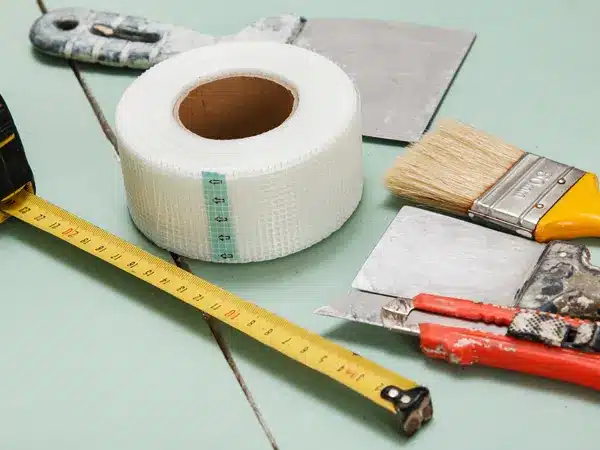

Different Types of Tape for Crack Repairs
- Mesh Tape: Strong, flexible, and great for wide or recurring cracks.
- Paper Tape: Best for smooth drywall cracks at seams but not flexible for shifting walls.
- Fiberglass Tape: Ideal for reinforcing cracks in high-movement areas.
Understanding Mud for Wall Crack Repairs
- Lightweight Joint Compound: Dries quickly, best for small cracks.
- All-Purpose Mud: Versatile for general wall repairs.
- Setting-Type Mud: Fast-drying for deeper cracks, but harder to sand.
Time for Drywall Patch Repair and to Fix Wall Cracks?
✘ Before Foundation Repair? No—wait until the foundation is stable.
✅ After Foundation Repair? Yes—once the structure has settled.
✅ During Dry Seasons? Yes—allows for accurate crack assessment.
✅ After Water Leaks Are Fixed? Yes—prevents moisture damage recurrence.
Preventative Measures for Future Cracks
- Maintain Proper Drainage – Direct rainwater away from your home’s foundation. It helps to prevent shifting.
- Monitor Humidity Levels – Sudden humidity changes are a problem. The extra moisture causes materials to expand and contract. That leads to the cracks you see. Consider getting a dehumidifier to help moderate in-house moisture levels.
- Reinforce – Your foundation is fixed, but cracks recur. No what? Bring in a contractor. See if you need extra support beams or braces that can reduce movement in key areas of your home.
- Schedule Regular Inspections – Catch small issues before they turn into major repairs.
How to Repair Wall Cracks: When to Worry, When to Get Help
Wall cracks and gaps don’t have to be a mystery. Some are harmless, while others signal foundation trouble. Make sure your foundation is in good shape before breaking out the spackle. If you suspect something bigger is going on, don’t wait!
That’s where Arch Foundation Repair comes in. We offer expert foundation assessments and top-notch repairs in the Dallas metro area. Give us a call today to schedule a free foundation estimate—because a solid home starts with a solid foundation!
